Guide to gold

Gold Properties

Gold's Physical Quantities#

  • Density : 19,300 kg per cubic metre.
  • Melting point : 1337.33 K (1064.18 °C).
  • Boiling point : 3129 K (2856 °C).
  • Atomic number : 79.
  • Nucleic protons : 79.
  • Atomic weight : 197.
  • Nucleic neutrons (normal) : 118.

For an excellent detailed listing of further physical qualities/quantities please refer to gold's entry on Wikipedia

Gold's Chemical Qualities#

Gold is a chemical element so it can only be found, not manufactured. It is largely inert, which means:- (i) It is almost totally immune to decay, (ii) it is not very useful in any industrial/chemical processes which use it up and (iii) it is easy to store cheaply for long periods.

It is remarkable for its rarity, density, softness, and its very good electrical conductivity.

Gold finds a small number of industrial uses arising from its physical qualities. It is used in dentistry and in the manufacture of some electronics which require high quality non-corrosive contacts.

However its genuinely practical uses are numerically insignificant. Of all the gold dug from the Earth the bulk of it us used in these three ways:-

  • As a personal adornment, where its colour and its relationship to wealth contribute to its use in jewelry manufacture (~60% of the global supply)
  • As a public store of wealth - backing monetary systems (~20% of the global supply)
  • As a private store of wealth (~15% of the global supply)

Gold's Abundance#

Gold is extremely rare. According to all geological experience it is found almost entirely in low concentrations in rocks.

Nuggets are an exception, but account for the tiniest portion of discovered gold. Interestingly there is also gold in solution in seawater, however although the aggregate quantity is large (because the oceans are huge), the concentration is low and renders extraction beyond any reasonable technology. The cost of pumping 1,000 tonnes of seawater for processing would considerably exceed the tiny amount of gold it would yield.

Gold's average concentration in the Earth's crust is 0.005 parts per million. The technology of extraction is expensive primarily because the process always requires the manipulation of large physical quantities of ore for small results. The energy required to heave, grind and process ore is itself valuable and places a lower limit on the quality of ore which can be profitably worked. Rising energy costs always impact mining viability.

At different points concentration of minerals within the earth's crust varies from their average, and it is those variations which produce workable ores. Iron, for example, accounts for an average 5.8% of the content of the Earth's crust. It needs to be concentrated by natural variations to about 30% to be considered an ore, indicating a required geological concentration of about 5 times. A lower grade gold ore would contain something like 5 grams per tonne (5 parts per million). So gold ore needs to be concentrated by about 1,000 times above the average to become viable.

The process of gold concentration happens both above and below the surface of the Earth. On or near the surface there is alluvial gold which has been concentrated by the effects of running water, for example in rivers. Because of its extreme density gold will readily fall out of suspension as water slows down. So where a river cuts through gold bearing rock, and then slows down as it hits a flatter/wider river bed, gold will concentrate in a 'placer' deposit, allowing extraction of gold particles by panning and the modern day industrial equivalents. The California Gold Rush of 1849 grew out of the gold deposits on the Sacramento river which were particularly accessible to this technique.

Underground gold veins or 'lodes' are produced in association with various metallic deposits, often including sulphides and pyrites. Gold concentration may occur as other minerals are leached away over a long period. Ore of sufficient yield is very rare.

Gold's Extraction and Purification#

Because of gold's inertness some 80% of gold within ore is in its elemental state. There are several processes for extracting, and then purifying it.

Amalgamation is a mercury based process which works because of gold's willingness to be dissolved by mercury. The mercury is applied on an ore, picks up the gold, and the resulting amalgam is distilled, with the mercury being boiled off to remove it. Mercury is highly toxic and therefore environmentally sensitive, making the industrial plant to perform this type of extraction expensive.

The most important process for gold extraction is cyanidation. Sodium cyanide solution in the presence of air causes gold to enter into solution. Good quality ores give up their gold under cyanidation in what is called vat leaching. Lesser quality ores require heap leaching, which involves huge piles of ore being repeatedly re-sprayed with the cyanide solution over a prolonged period.

Relatively raw gold is purified in two main ways. The cheaper first stage of purification is the Miller process which uses chlorine gas and reaches purification of 99.5%, and then there is the more expensive Wohlwill process which electrolyses gold to purities of 99.99%.

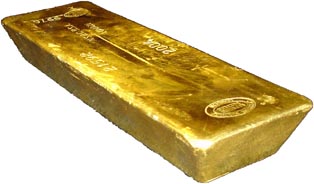

400 oz LBMA approved good delivery gold bullion bar on a white background

Note that London Good Delivery Bars - the main trading unit of bullion (illustrated) - are specified at a minimum of 99.5% pure.

Gold's Intangible Merit#

One of gold's important properties is psychological. Most people readily associate gold's distinctive colour with wealth, and many even consider the colour beautiful - possibly because it is so closely associated with money. This gives it an immeasurable advantage over other tangible and portable stores of wealth.

The gold jewellery trade is a permanent and global marketing initiative for bullion, and has for thousands of years gone hand in hand with un-worked metal in promoting gold as a store of material value. It creates a significant barrier to entry for any rival material and contributes to the security of gold, in bullion form, as a form of money.

Gold's & Modern Money#

Throughout civilisation gold has been used as money, but the two are less closely related now than has been normal through the last 3,000 years.

Modern currencies (like many older forms of money) can have their supply expanded by diktat, usually by a government or a central bank. All modern money is subject to government in this way, which means that the value of savings is decided, to an extent, according to a political agenda. Modern savers are exposed to any economic or political crisis which could cause money to be over-issued, so their long term prosperity depends on the reliability of the political mechanisms for imposing monetary scarceness.

Historical precedent indicates it is not always in politicians' interest to keep money scarce.

Because of its rarity gold reliably imposes scarceness, which is what occasionally makes it useful as money. Whether or not a physical manifestation of money - in the form of bullion - is a desirable thing is open to debate at any given time. But if a monetary material of reliable scarceness is desirable then gold is still as appropriate as ever. The investment question concerning gold is not whether or not it reliably imposes scarceness, which it does, but whether or not such reliable scarceness will in the future be required by savers.

Because the significant majority of people currently believe that our governments and our central banks have sufficient skill to manage the supply of money, gold’s use as a monetary material has waned, especially over the last 70 years. This is a regular pattern. Gold will quietly slip into the background when paper money becomes widespread because, as the famous Gresham's Law says "bad money drives good money out of circulation". But part of the mystery of money concerns gold's cyclical re-appearance, which the following pages will aim to explain.

Please Note: This analysis is published to inform your thinking, not lead it. Previous price trends are no guarantee of future performance. Before investing in any asset, you should seek financial advice if unsure about its suitability to your personal circumstances.
